MORIMOTO BIGBANGER LED PODS: NCS SPOT BEAM
Game Changing Performance
Introducing the Morimoto BigBanger LED Pods BAF118 -- the ultimate off-road lighting solution. These pods redefine performance, reliability, and style in the automotive aftermarket. The NCS Spot Beam pattern, a highlight feature, delivers a powerful 5-degree hot spot, paired with a 14H x 4C degree flood beam, offering unrivaled long-range visibility. Designed with precision, the BigBanger boasts lumen-dense LEDs from Nichia, ensuring maximum light output without compromise. With versatile mounting options and customizable settings, these pods are adaptable to any terrain. Built for power and durability, these pods feature a copper DTP PCB for optimal heat transfer, an electroplated aluminum shell for durability, and IP69K-rated weather resistance. Plus, they come standard with an Amber Back Light for added safety. The Morimoto BigBanger LED Pods set a new industry standard, making darkness a thing of the past. Upgrade your off-road experience today!
KEY FEATURES

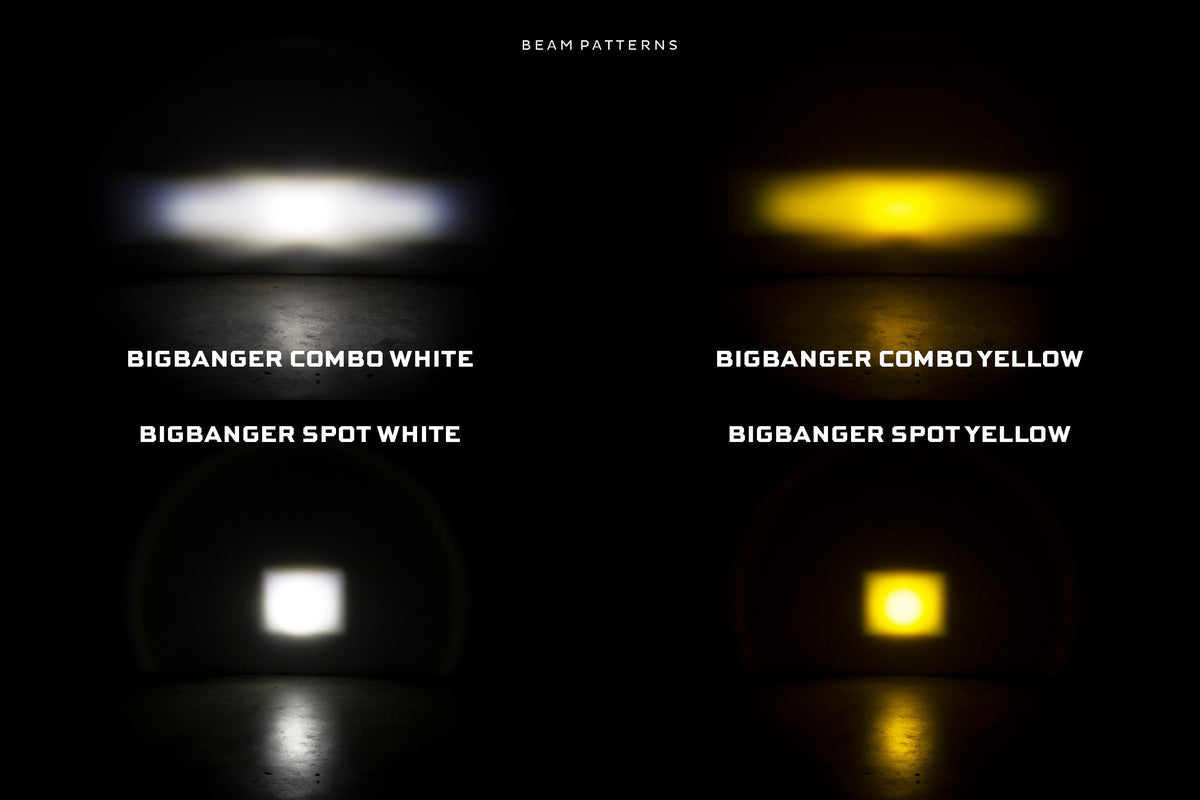

NCS Spot Beam – 5-degree hot spot for exceptional visibility.
High-Performance LEDs – Nichia and Osram LEDs optimized for maximum brightness.

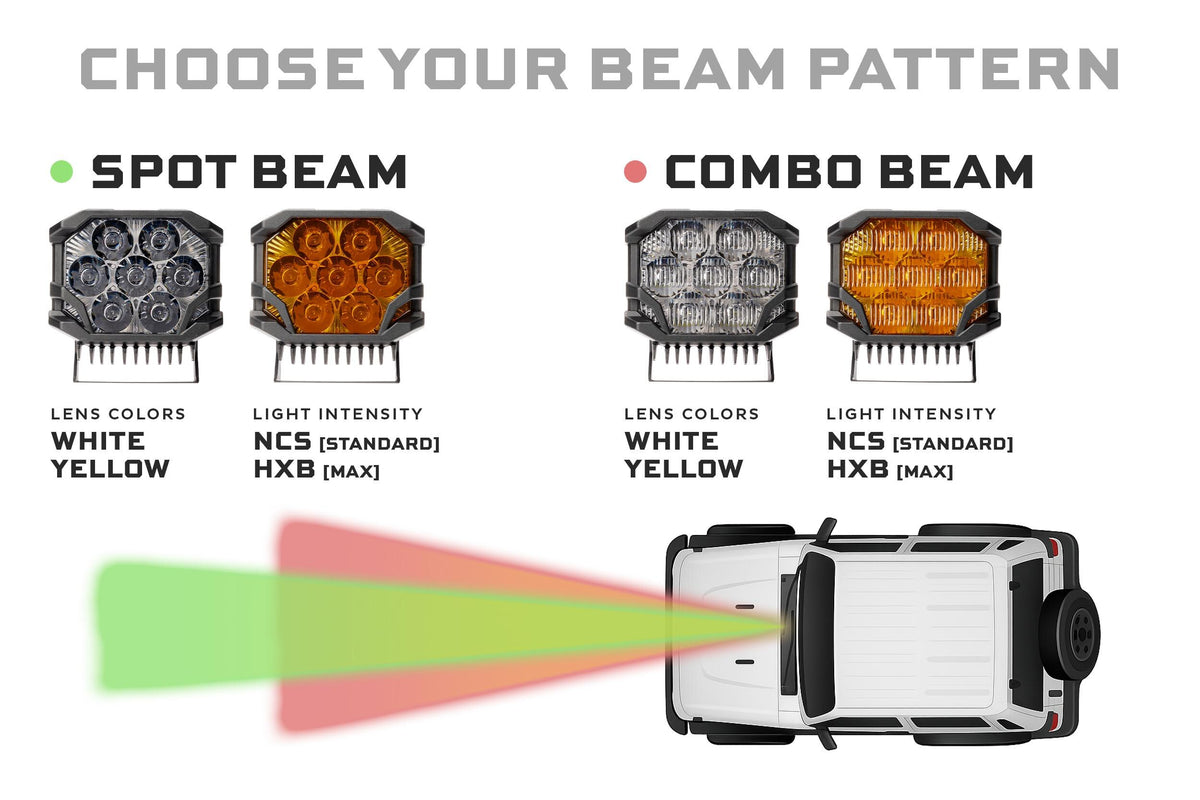

Custom Options – Choose from two tiers, beam patterns, and colors.
Durable Build – Copper DTP PCB, cast aluminum shell, and weather-resistant components.

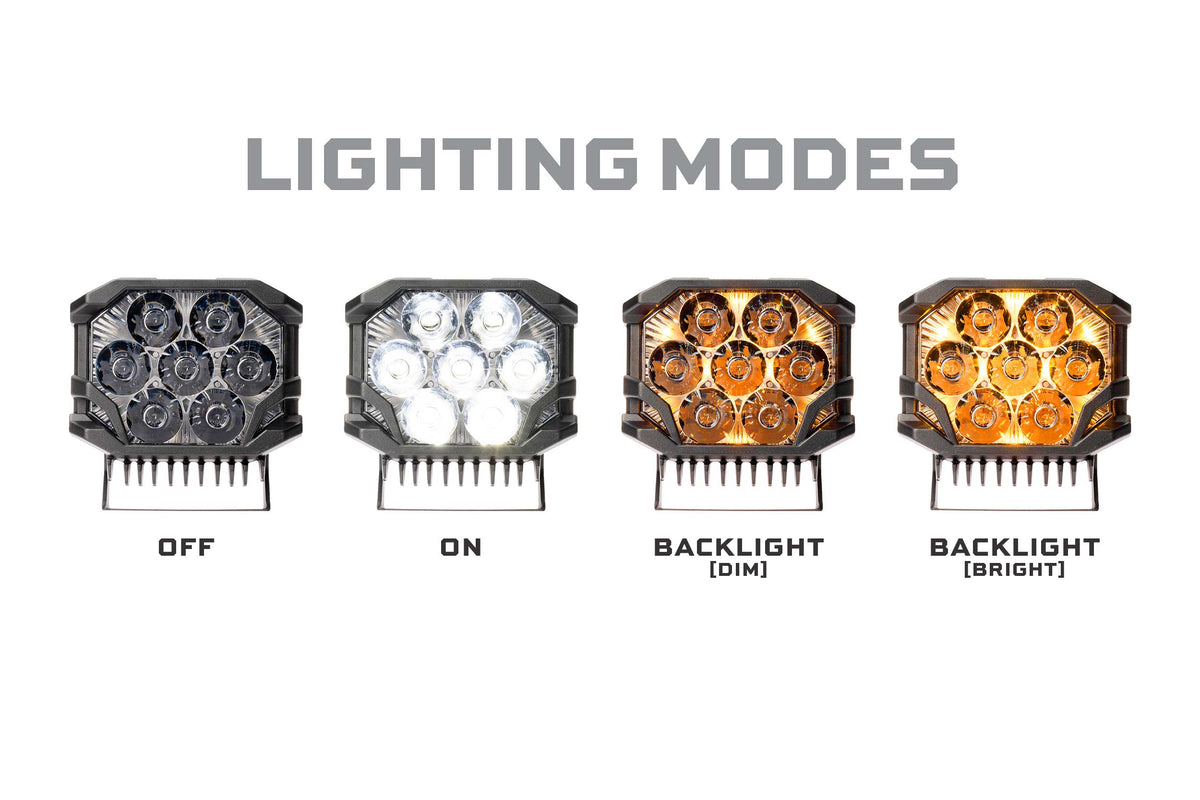

Amber Backlight – Daytime visibility, 90% dim at night to prevent glare.
Compatibility
Universal: With Included Standard Bottom Mount Brackets
Independent Photometric Test Report

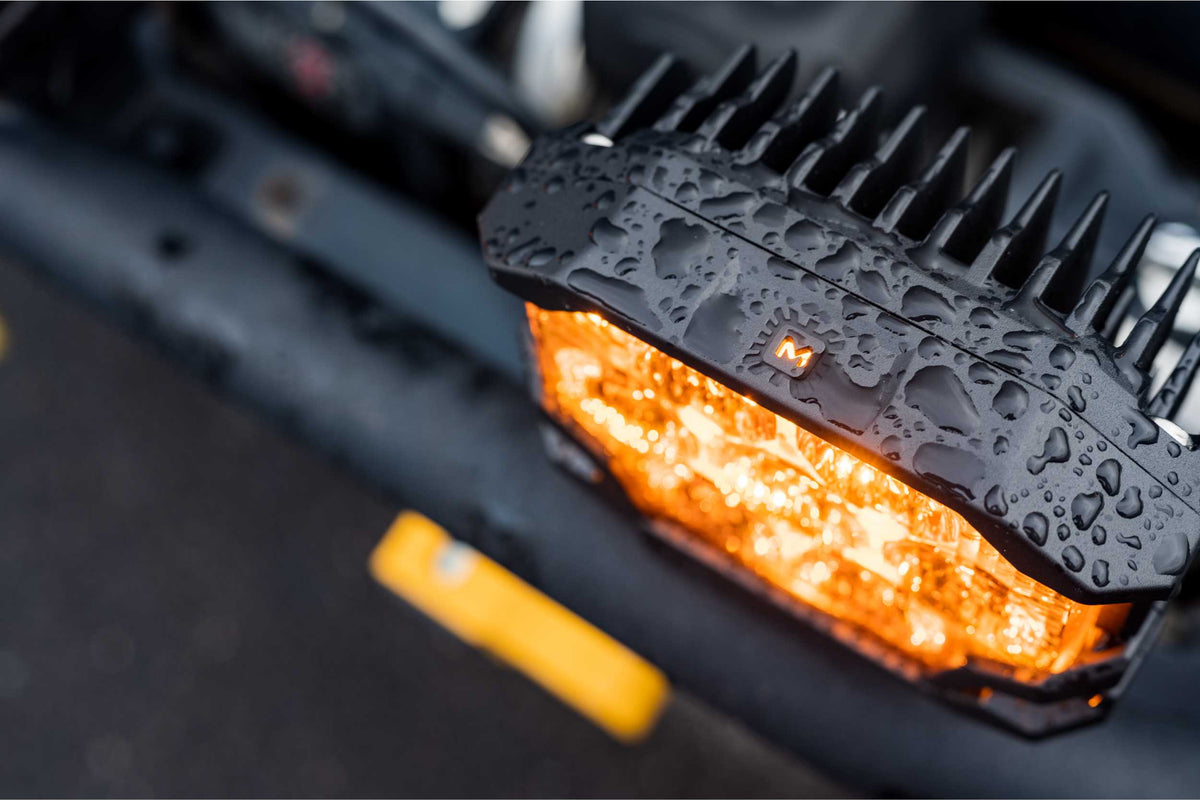

, IP69K
Not sure if this is right for your build? Contact MWCustoms before ordering and we'll help you check.
Specs
Note: These specifications are per pod / each!
Intensity (White): 425,000 Cd (4,250 lux @ 10m)
Intensity (Yellow): 290,000 Cd (2,900 lux @ 10m)
Input Voltage: 9-18V DC
Current (@ 13.5V DC): 2.74A (Stabilized), 3.33A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
Peak Luminosity (raw): 3,150lm
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D, 3lb 11oz / 1.7kg (w/ all hardware)
Color: 2400K (Yellow) or 5600K (White)
Light Source: 7x Nichia NCSY131F or Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)

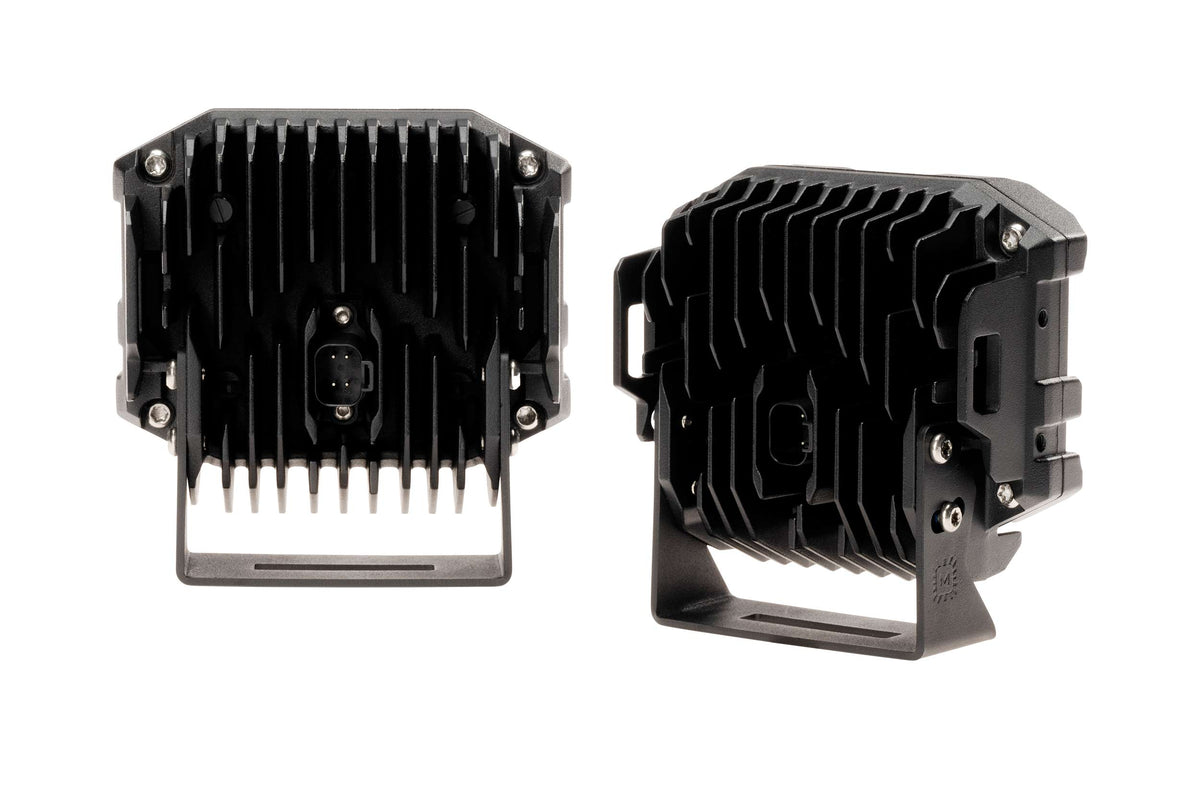

Input: Integrated Deutsch DT 4-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Part Number: BAF118 (White), BAF119 (Yellow)
Warranty: Lifetime limited warranty from Morimoto (does not cover modifications, alterations or misuse)
What's Included

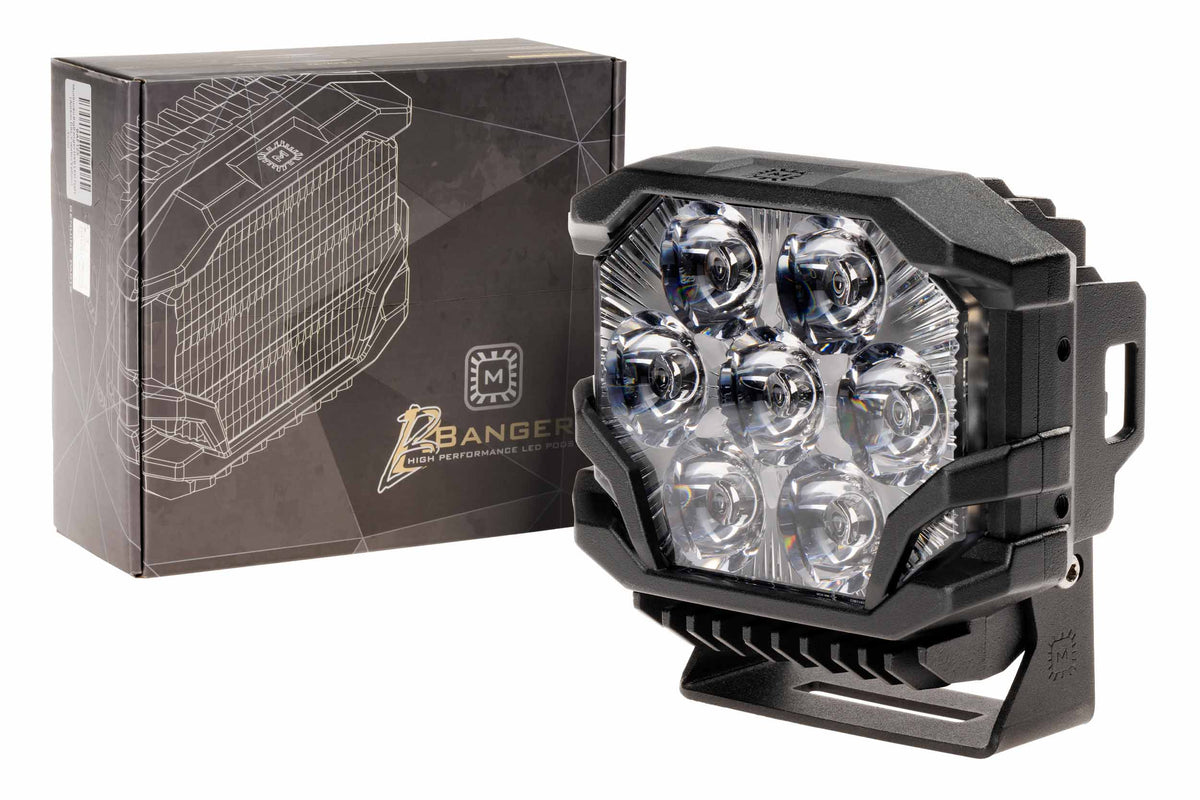

LED Pod: 1x Morimoto BigBanger NCS Spot Beam (Sold Individually)
Bracket: 1x Surface Mount Bracket
Hardware: 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M6x1.0 SS Screws
Optional Wiring: 1x Morimoto Switched Relay Harness or Pigtail
