MORIMOTO BIGBANGER LED PODS: HXB COMBO BEAM
Game Changing Performance

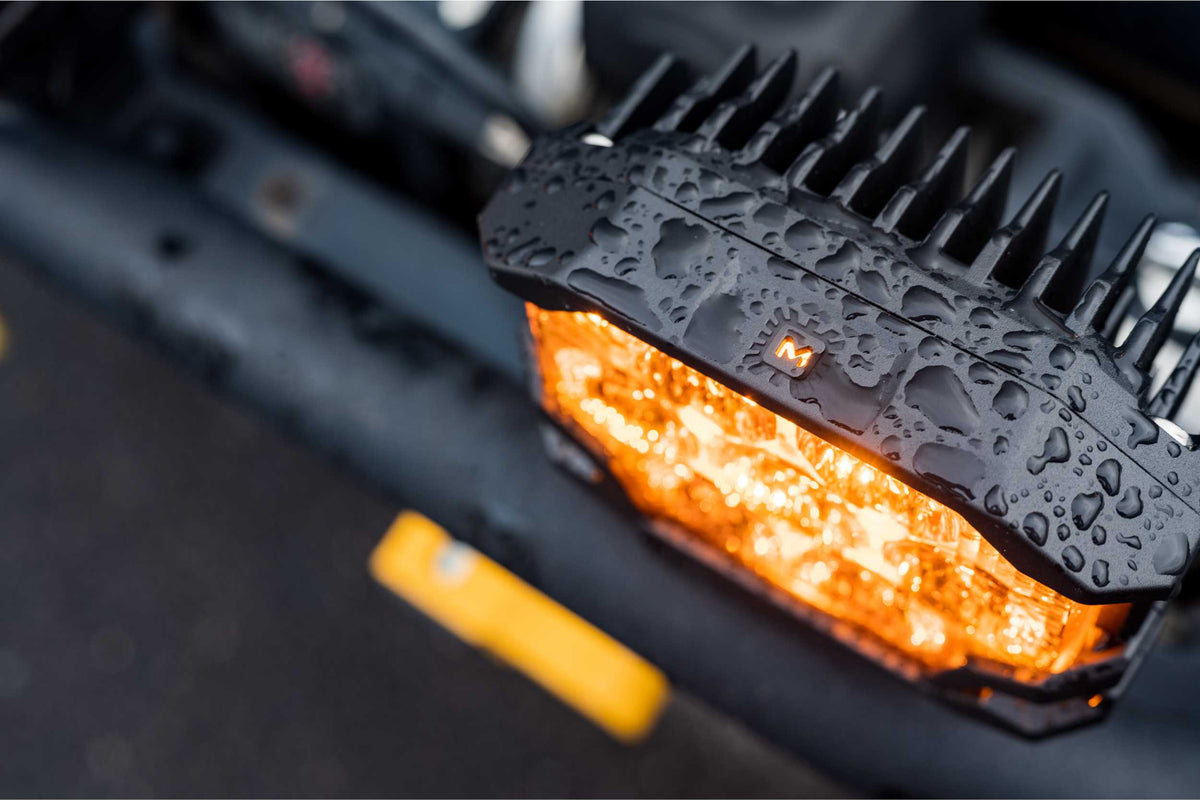

Introducing the Morimoto BigBanger LED Pods BAF124 - the ultimate lighting solution for off-road enthusiasts! These high-performance pods redefine off-road illumination with their standout feature, the HXB Combo Beam pattern. The HXB Combo Beam provides unmatched versatility, blending width and distance illumination seamlessly. Whether you're navigating rugged trails or venturing into the unknown, the powerful hot spot combined with ample width and height ensures a comfortable and safe drive. But that's not all. The BigBanger Pods offer exceptional performance with lumen-dense LEDs from Nichia and Osram, ensuring maximum light output without compromise. These pods are built to last, featuring a copper DTP PCB for efficient heat transfer, IP69K weather resistance, and a robust construction that can withstand even the toughest conditions. Customization is at your fingertips, with options for beam patterns, color outputs (white or yellow), and the ability to link pods together for a bespoke light bar.
KEY FEATURES
Powerful Illumination – HXB Combo Beam for exceptional off-road lighting.
Maximized Brightness – Osram LEDs for high-performance light output.
Rugged and Weatherproof – Built to endure with copper DTP PCB and IP69K protection.

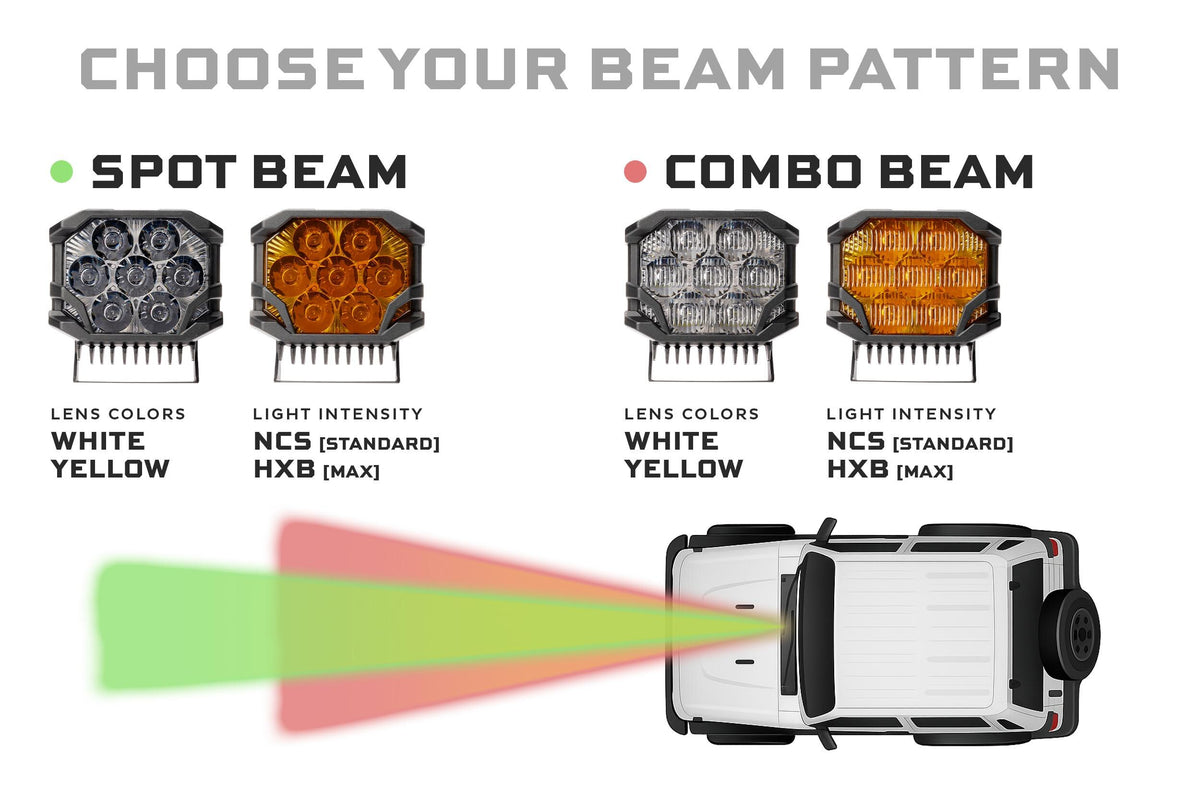

Customizable Setup – Choose beam patterns, colors, and link pods for a tailored light bar.
Safety First – HXB Combo Beam ensures a safe and comfortable off-road experience.
Compatibility
Universal: With Included Standard Bottom Mount Brackets
Independent Photometric Test Report
, IP69K
Not sure if this is right for your build? Contact MWCustoms before ordering and we'll help you check.
Specs
Note: These specifications are per pod / each!
Intensity (White): 210,000 Cd (2,100 lux @ 10m)
Intensity (Yellow): 158,000 Cd (1,580 lux @ 10m)

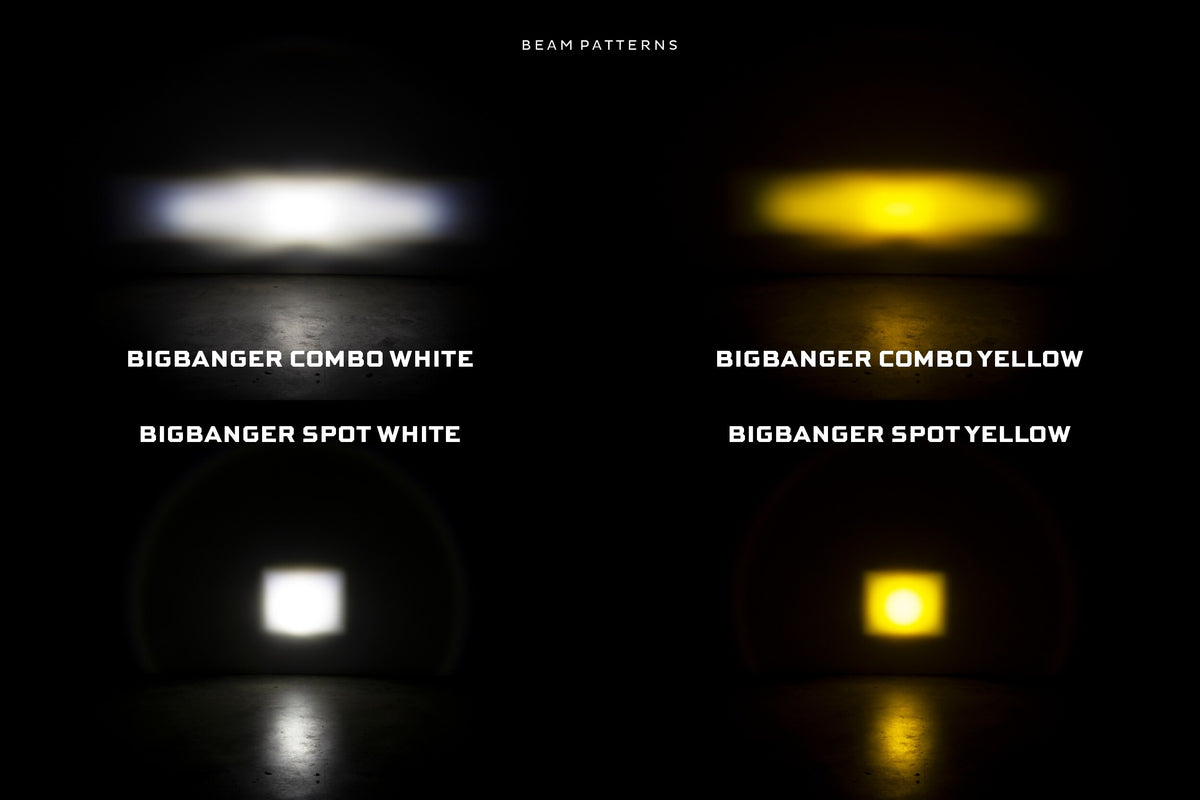

Beam Pattern: 46 x 15
Input Voltage: 9-18V DC

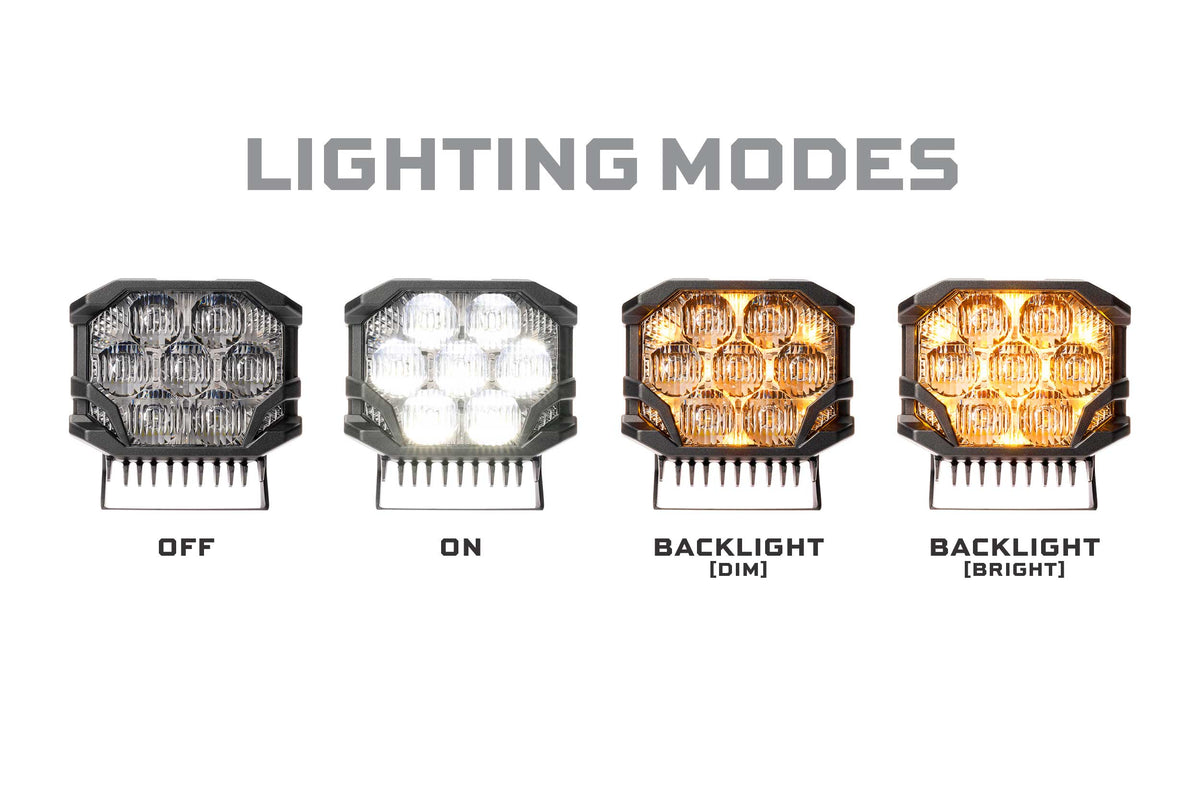

Current (@ 13.5V DC): 5.55A (Stabilized), 8.15A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
Peak Luminosity (raw): 7,000lm
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D, 3lb 11oz / 1.7kg (w/ all hardware)
Color: 2700K (Yellow) or 5700K (White)
Light Source: 7x Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)

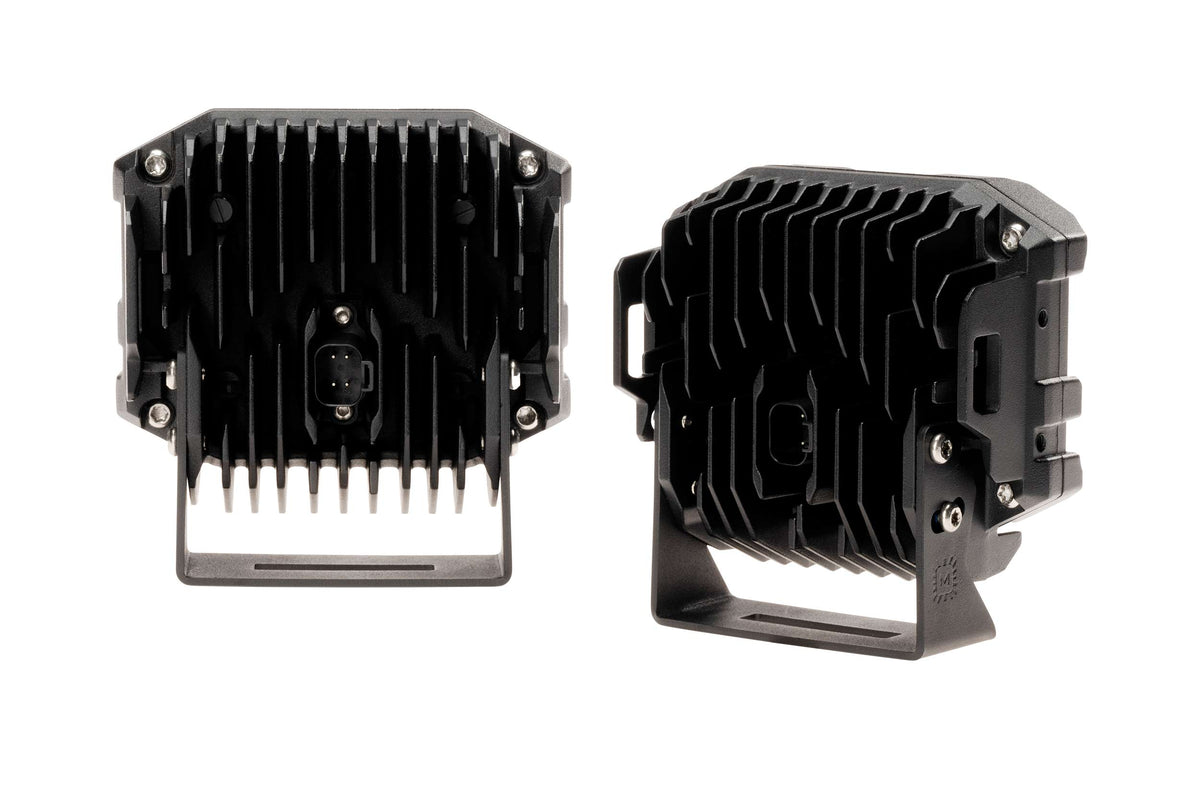

Input: Integrated Deutsch DT 4-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

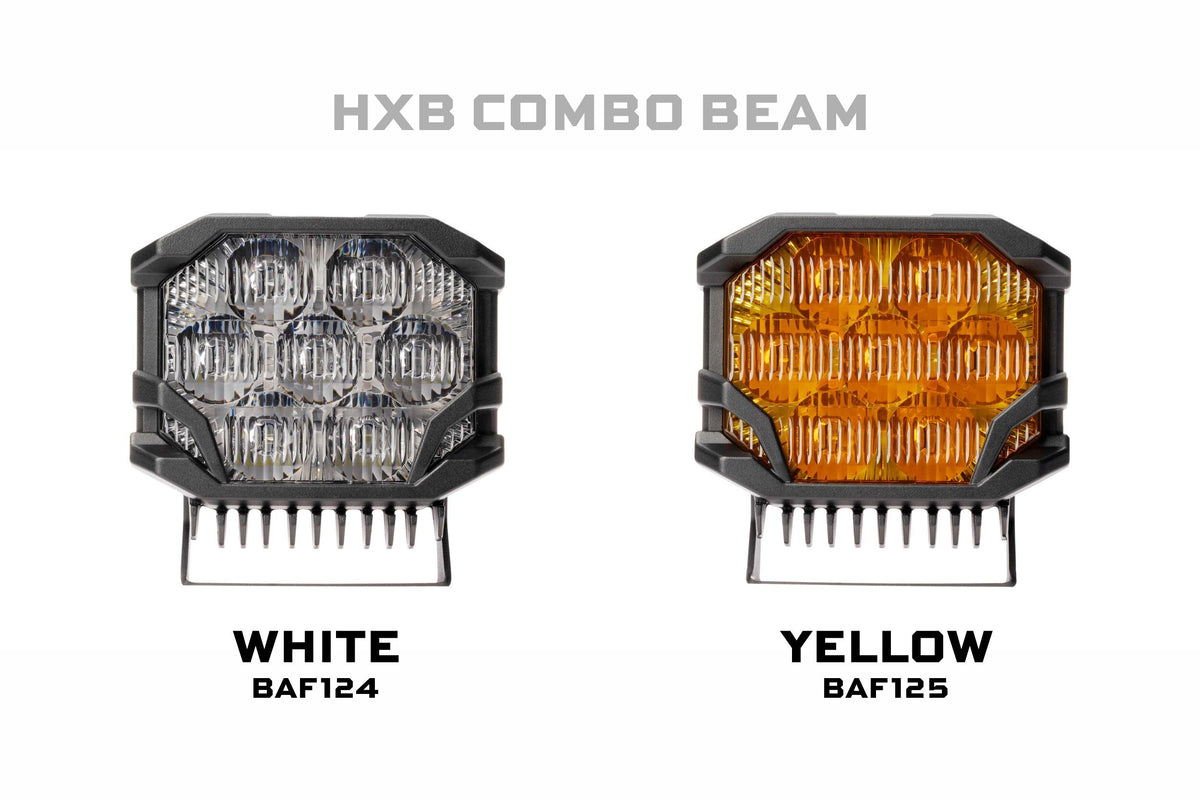

Part Number: BAF124 (White), BAF125 (Yellow)
Warranty: Lifetime limited warranty from Morimoto (does not cover modifications, alterations or misuse)

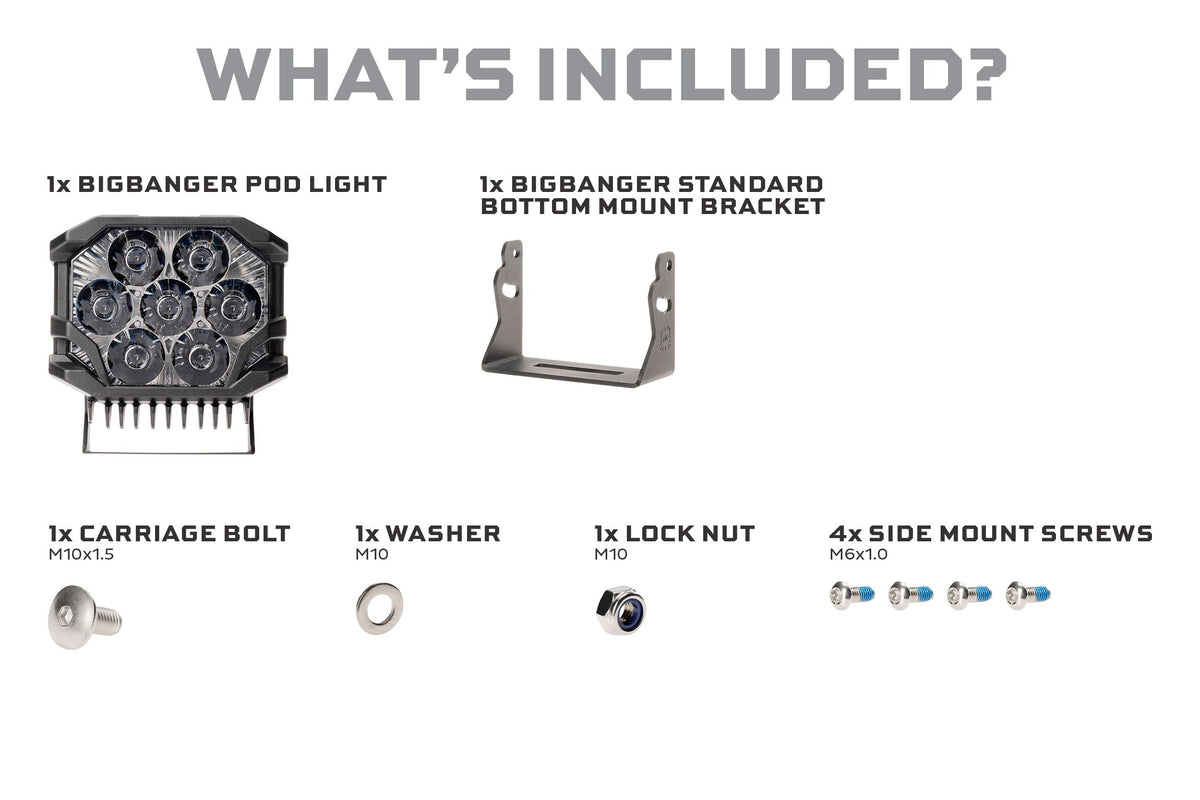

What's Included

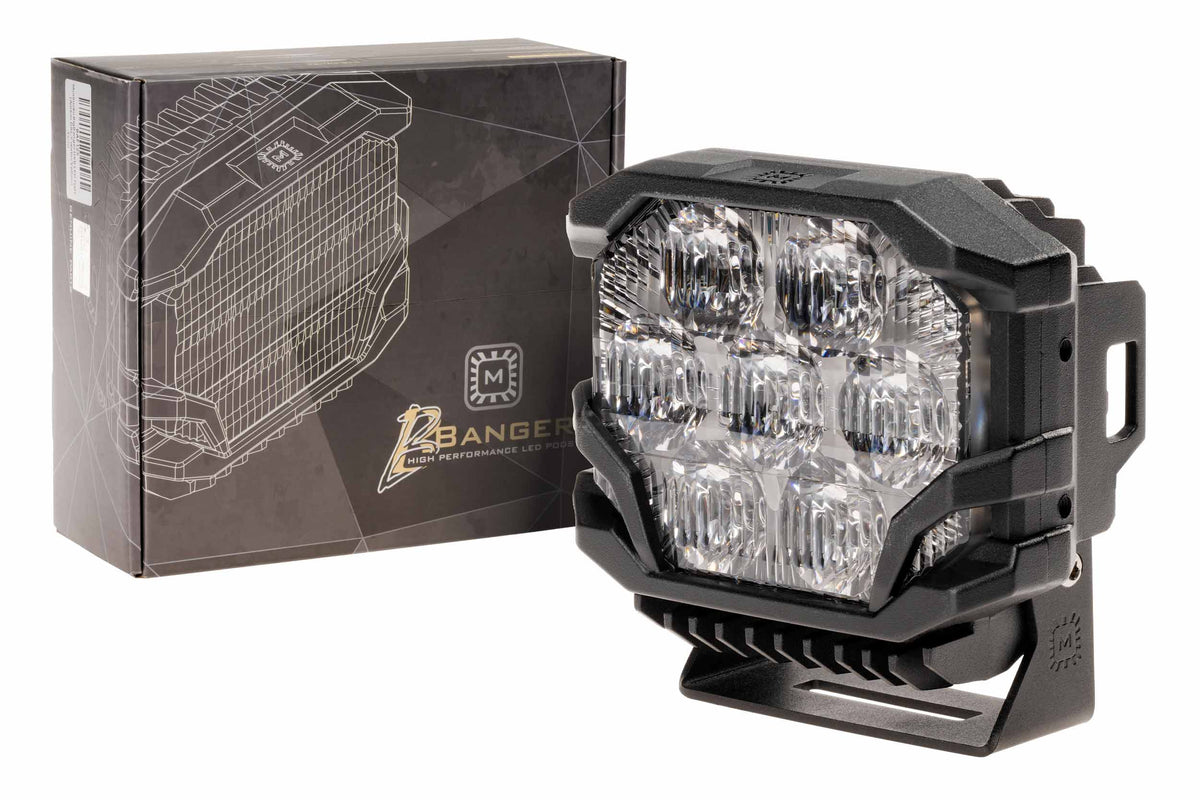

LED Pod: 1x Morimoto BigBanger HXB Combo Beam (Sold Individually)
Bracket: 1x Surface Mount Bracket
Hardware: 2x M10x1.5 SS Carriage Bolts, 2x M10 SS Washers, 2x M10 SS Lock Nuts, 8x M6x1.0 SS Screws
Optional Wiring: 1x Morimoto Switched Relay Harness or Pigtail
Installation
Questions during install? Call MWCustoms at (316) 925-7145 and our team will help you through it.
