Morimoto LED Ditch Light System: 2015-2020 Chevy Tahoe/Suburban
PART NUMBER:
BAF142
$ 117.00
- Free shipping on orders over $500
- Warranty included
- Expert install support available
MORIMOTO LED DITCH LIGHT SYSTEM: 2015-2020 CHEVY TAHOE/SUBURBAN
Light the Edges. Own the Trail.

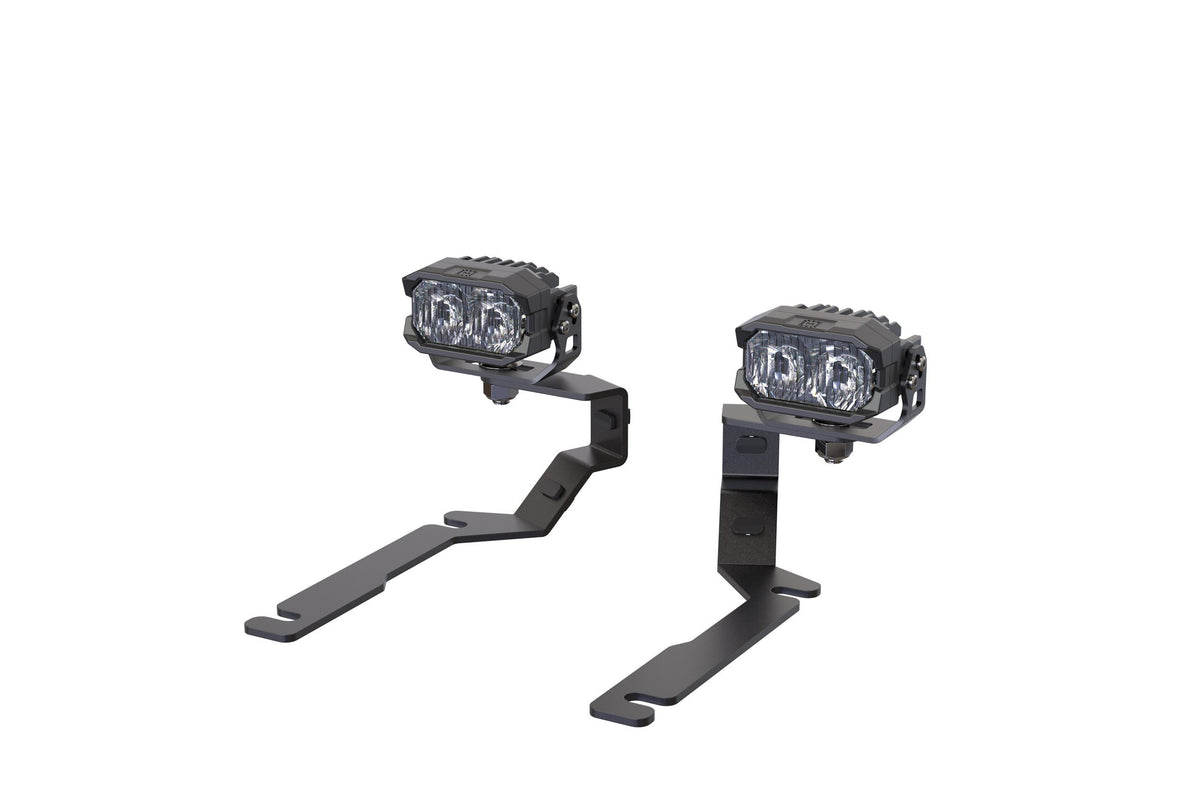

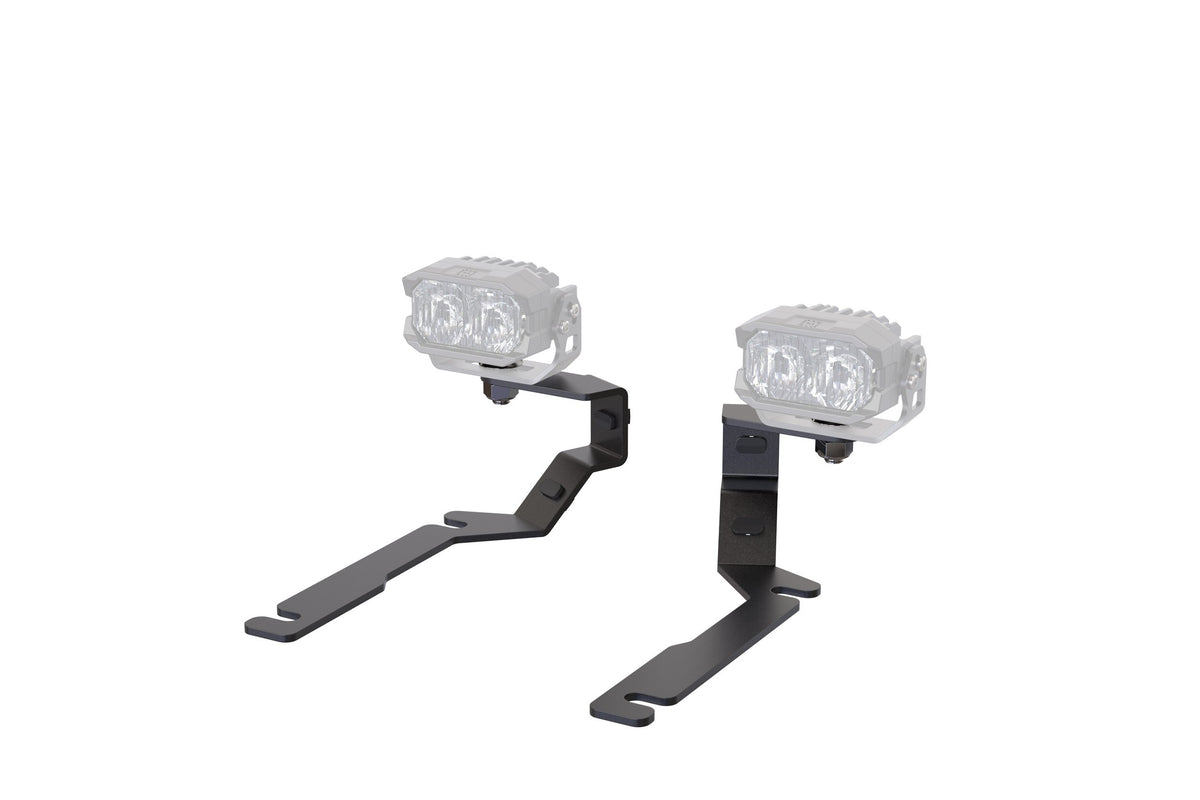

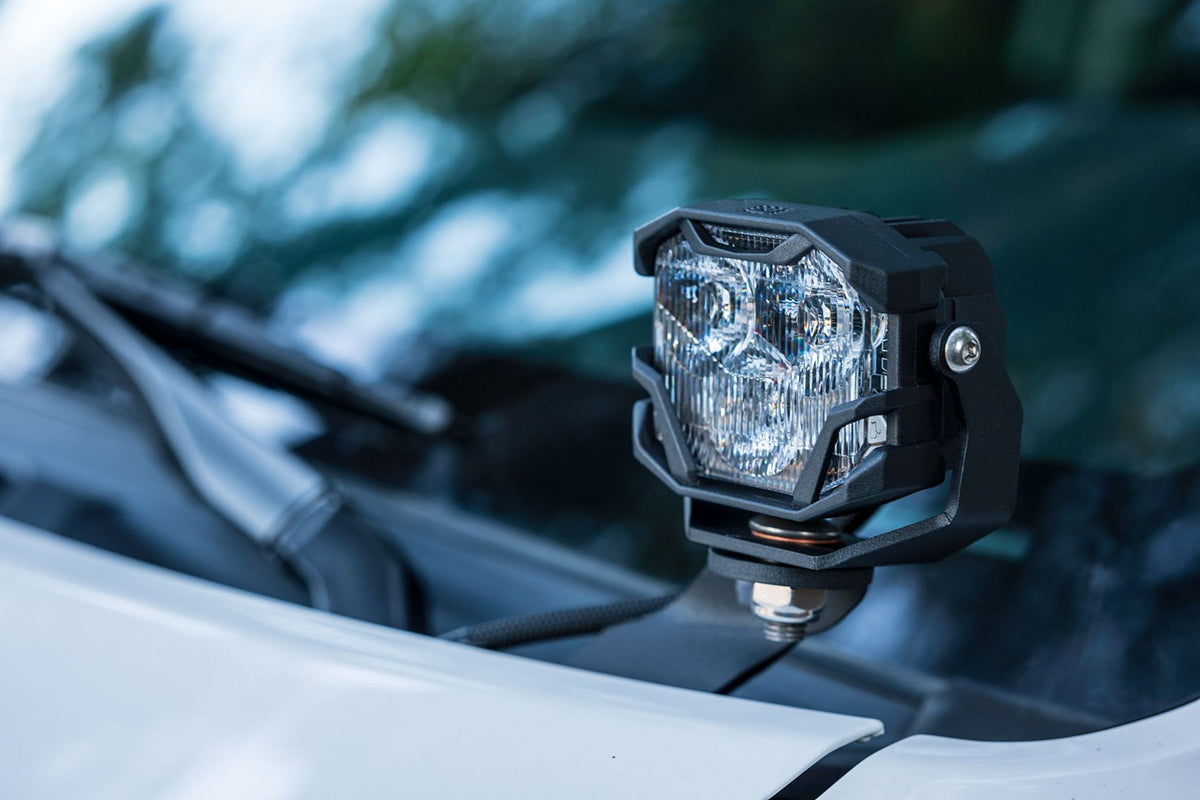

Morimoto ditch light brackets and Banger LED pods made for the 2015-2020 Chevy Tahoe/Suburban. The laser-cut stainless brackets bolt to factory mounting points for a clean, modification-free install, putting a pair of Morimoto pods right where you need them to light up the sides of the road and trail. Choose 2Banger, 4Banger or BigBanger pods in white or yellow with the beam pattern you want, add a harness, or order the brackets on their own if you already have pods.
KEY FEATURES
Perfect Fit Brackets – Designed, engineered, and tested by Morimoto in Atlanta, GA for the 2015-2020 Chevy Tahoe/Suburban, with no modification needed.
Smart Design – Built-in wire routing clips for the cleanest install, no zip ties needed.
Durable Build – Laser-cut 304 stainless steel brackets, powdercoated to hold up in any environment.
Your Choice of Light – Run 2Banger / 4Banger / BigBanger pods in NCS or the brighter HXB version, white or yellow, in multiple beam patterns. Or order brackets only and bring your own pods.
All-Weather Versatility – Banger pods are built to IP69K weather resistance standards.
Optional Wiring – Add a plug-and-play Morimoto harness or simple DT pigtails to wire the lights your way.
Compatibility
Chevrolet Tahoe: 2015-2020 (all)
Chevrolet Suburban: 2015-2020 (all)
Compatible pods: Morimoto 1Banger, 2Banger, 4Banger, or BigBanger
Not sure if this is right for your build? Contact MWCustoms before ordering and we'll help you check.
Specs
Note: Pod specifications are per pod / each.

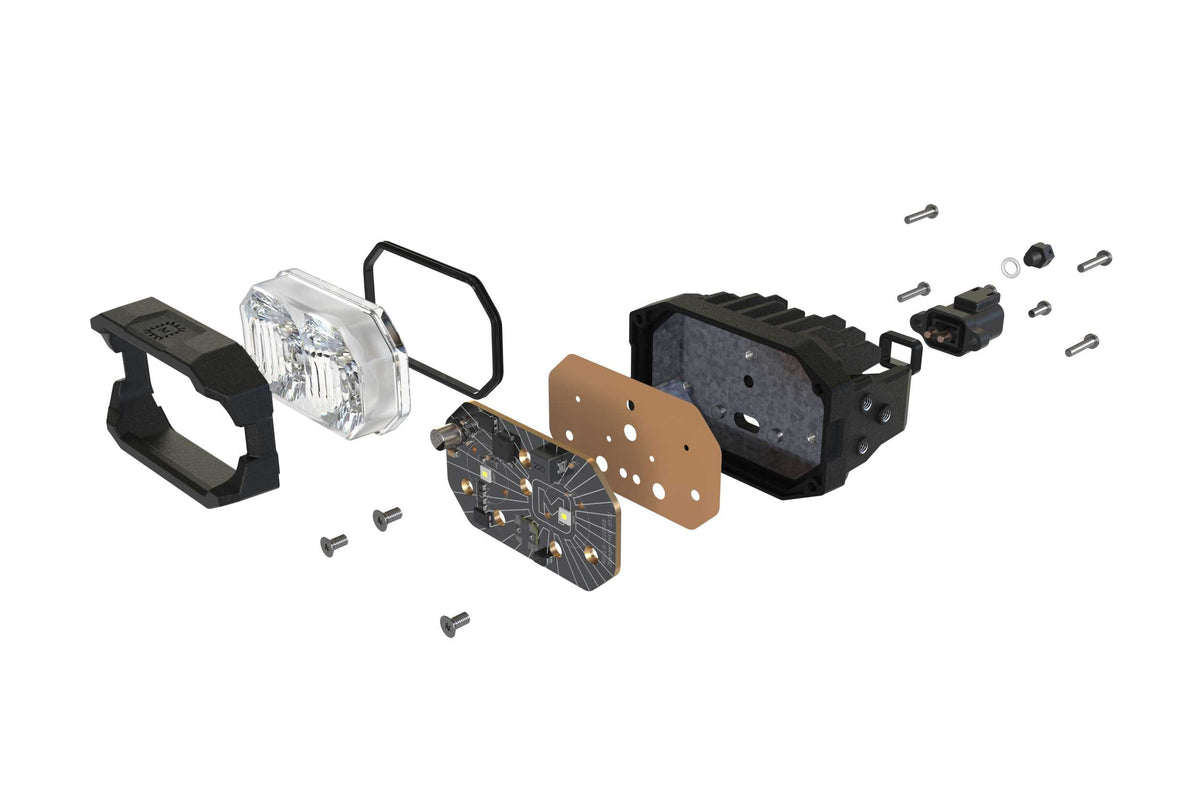

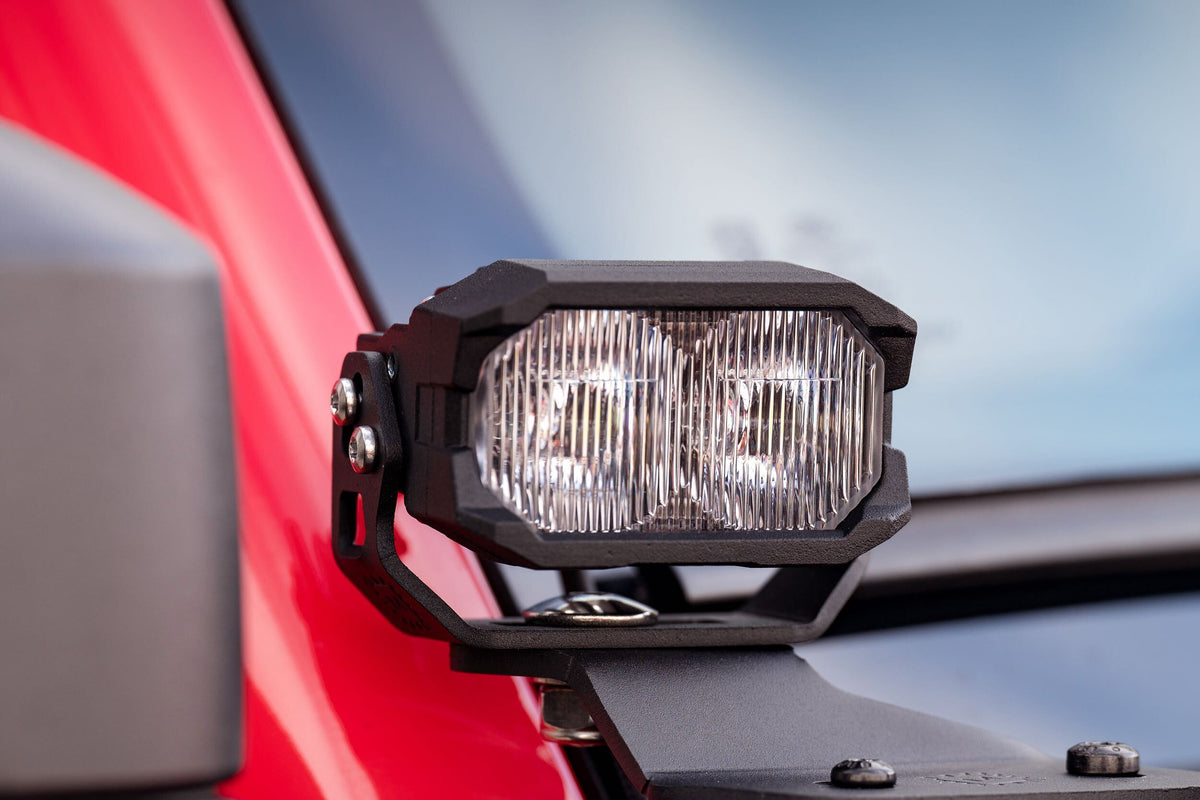

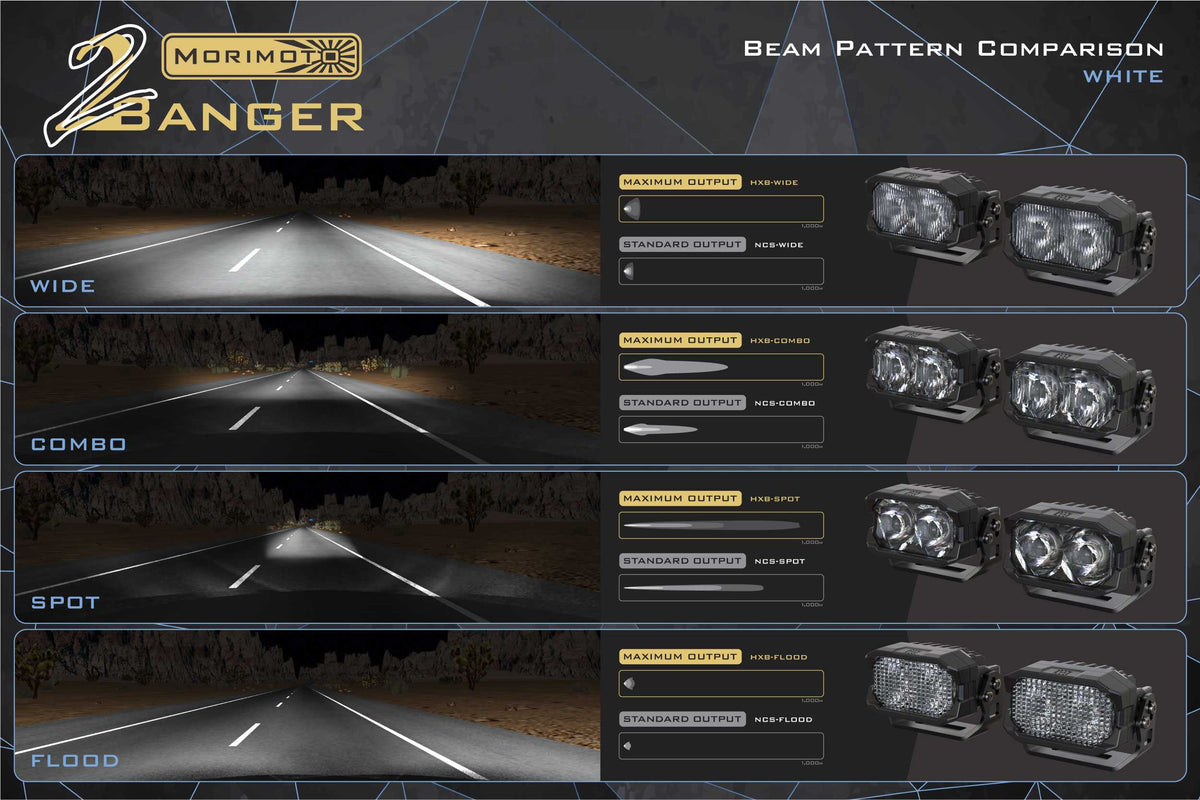

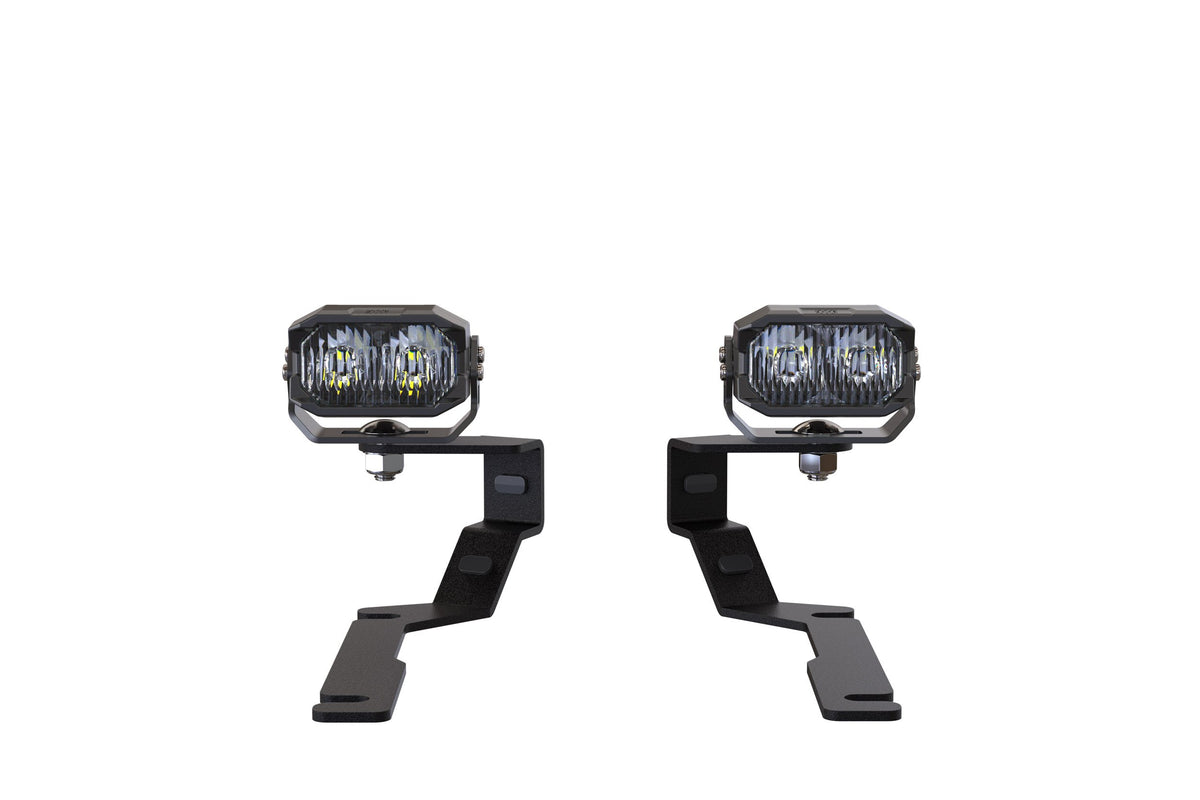

2Banger pods
Note: These specifications are per pod / each!
Intensity (HXB Flood White): 900 Cd (9 lux @ 10m)
Intensity (HXB Flood Yellow): 625 Cd (6.25 lux @ 10m)
Intensity (HXB Spot White): 147,500 Cd (1,475 lux @ 10m)
Intensity (HXB Combo White): 65,000 Cd (650 lux @ 10m)
Intensity (HXB Combo Yellow): 42,500 Cd (425 lux @ 10m)
Intensity (HXB Wide White): 12,700 Cd (127 lux @ 10m)
Intensity (HXB Wide Yellow): 8,400 Cd (84 lux @ 10m)
Intensity (NCS Flood White): 475 Cd (4.75 lux @ 10m)
Intensity (NCS Flood Yellow): 230 Cd (2.3 lux @ 10m)
Intensity (NCS Spot White): 97,500 Cd (975 lux @ 10m)
Intensity (NCS Spot Yellow): 55,000 Cd (550 lux @ 10m)
Intensity (NCS Combo White): 42,000 Cd (420 lux @ 10m)
Intensity (NCS Combo Yellow): 21,000 Cd (210 lux @ 10m)
Intensity (NCS Wide White): 8,000 Cd (80 lux @ 10m)
Intensity (NCS Wide Yellow): 4,250 Cd (42.5 lux @ 10m)
Peak Luminosity (lm)(Raw): 900 lm (NCS), 2000 lm (HXB)
Power (stabilized): 13.5 w (NCS), 24 w (HXB)
Current (amps @ 13.5V DC): 1.0A (NCS), 1.78A (HXB)
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB)
Light Source: 2x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Integrated Deutsch DT 2-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

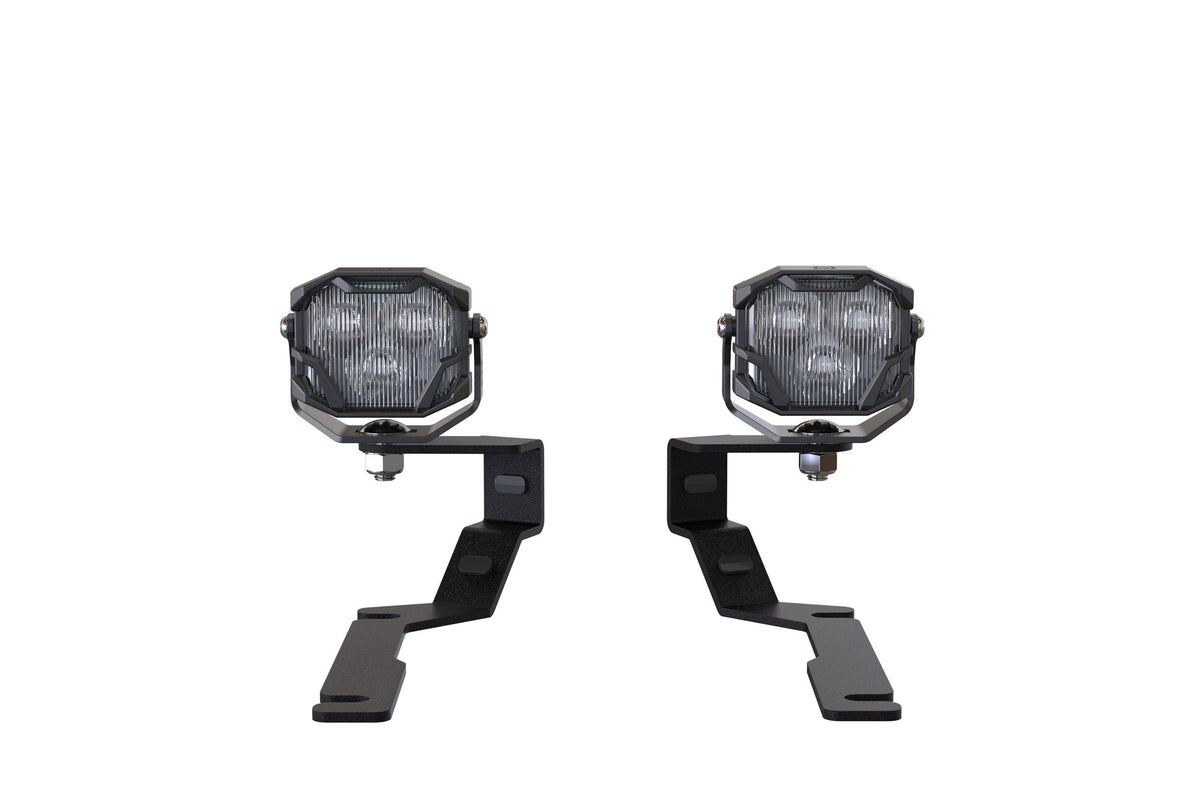

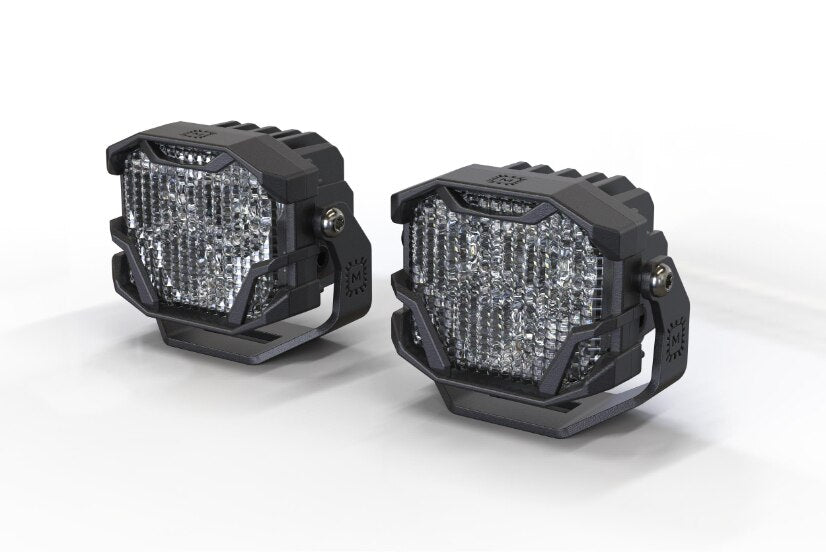

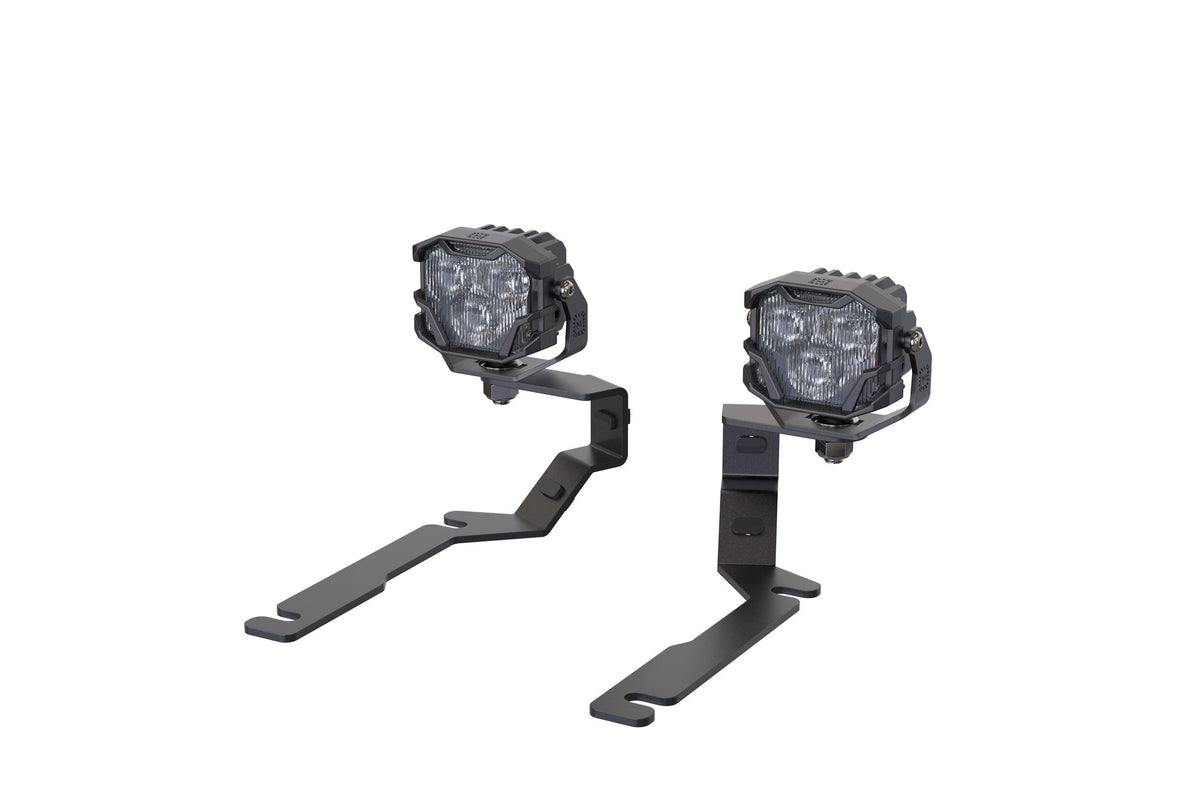

4Banger pods
Note: These specifications are per pod / each!
Intensity
NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White: 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow: 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB Combo Yellow: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage: 9-18V DC
Power: 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB)
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Proprietary Overmolded Deutsch DT 2-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

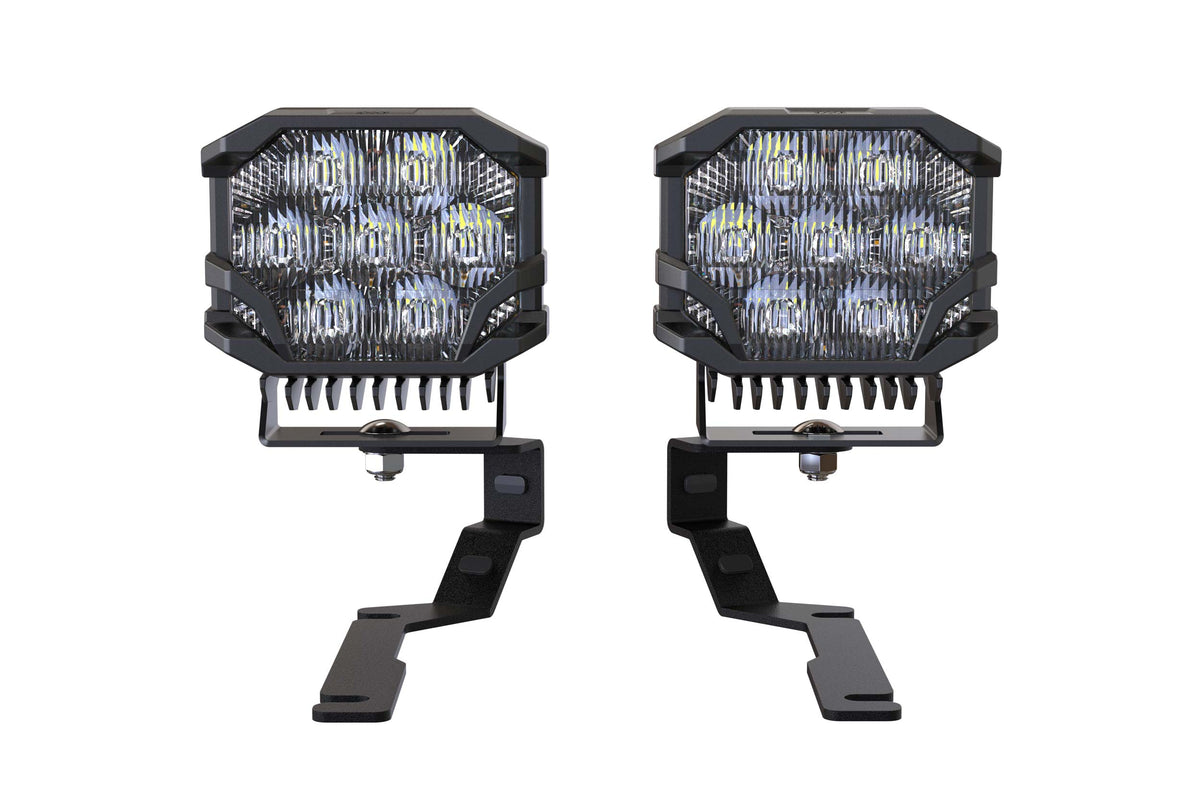

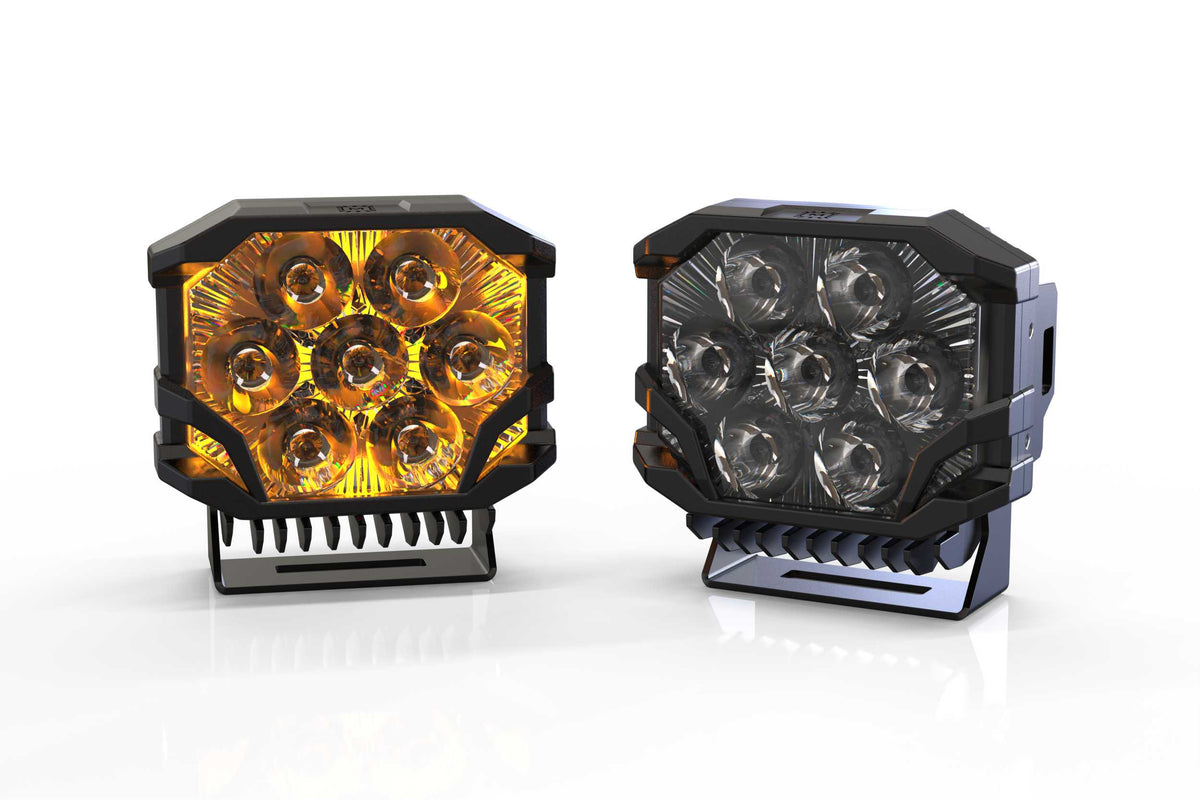

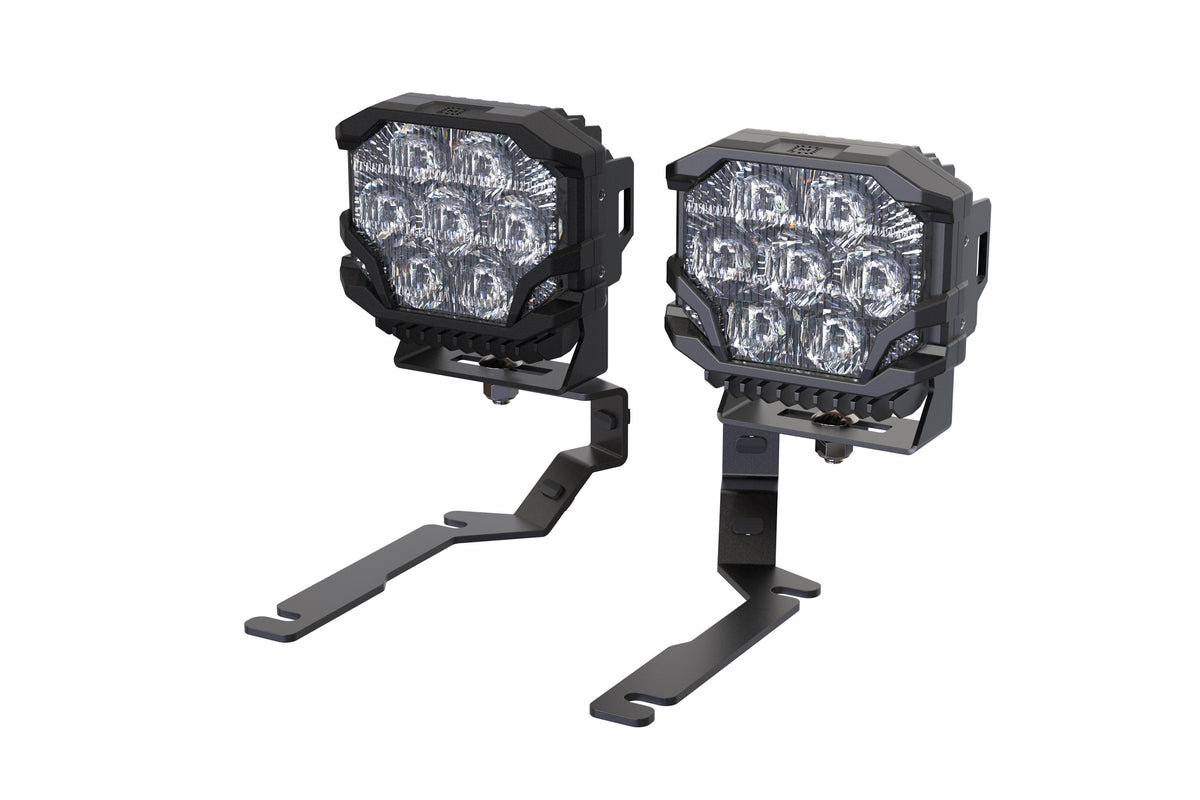

BigBanger pods
Note: These specifications are per pod / each!
Intensity (NCS Combo Yellow): 82,500 Cd (825 lux @ 10m)
Intensity (NCS Combo White): 115,000 Cd (1,150 lux @ 10m)
Intensity (NCS Spot Yellow): 290,000 Cd (2,900 lux @ 10m)
Intensity (HXB Combo Yellow): 158,000 Cd (1,580 lux @ 10m)
Intensity (HXB Combo White): 210,000 Cd (2,100 lux @ 10m)
Intensity (HXB Spot Yellow): 400,000 Cd (4,000 lux @ 10m)
Intensity (HXB Spot White): 535,000 Cd (5,350 lux @ 10m)
Peak Luminosity (Raw): 3,150lm (NCS), 7,000lm (HXB)
Input Voltage: 9-18V DC
Power: 36.5w (NCS), 77w (HXB), 30w (Backlight), 8w (Dim Backlight)
Current (@13.5V DC): 2.74A (NCS), 5.55A (HXB), 2.2A (Backlight), 600mA (Dim Backlight)
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB)
Light Source: 7x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)
Input: Integrated Deutsch DT 4-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

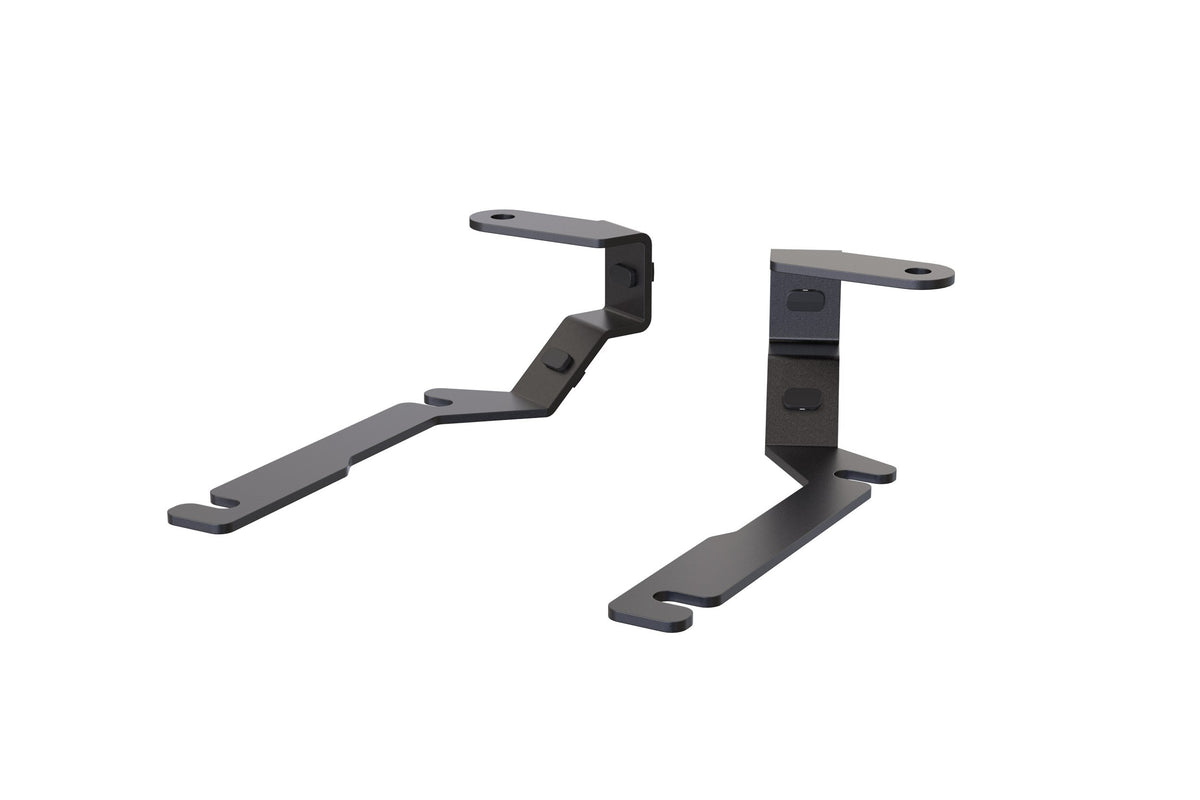

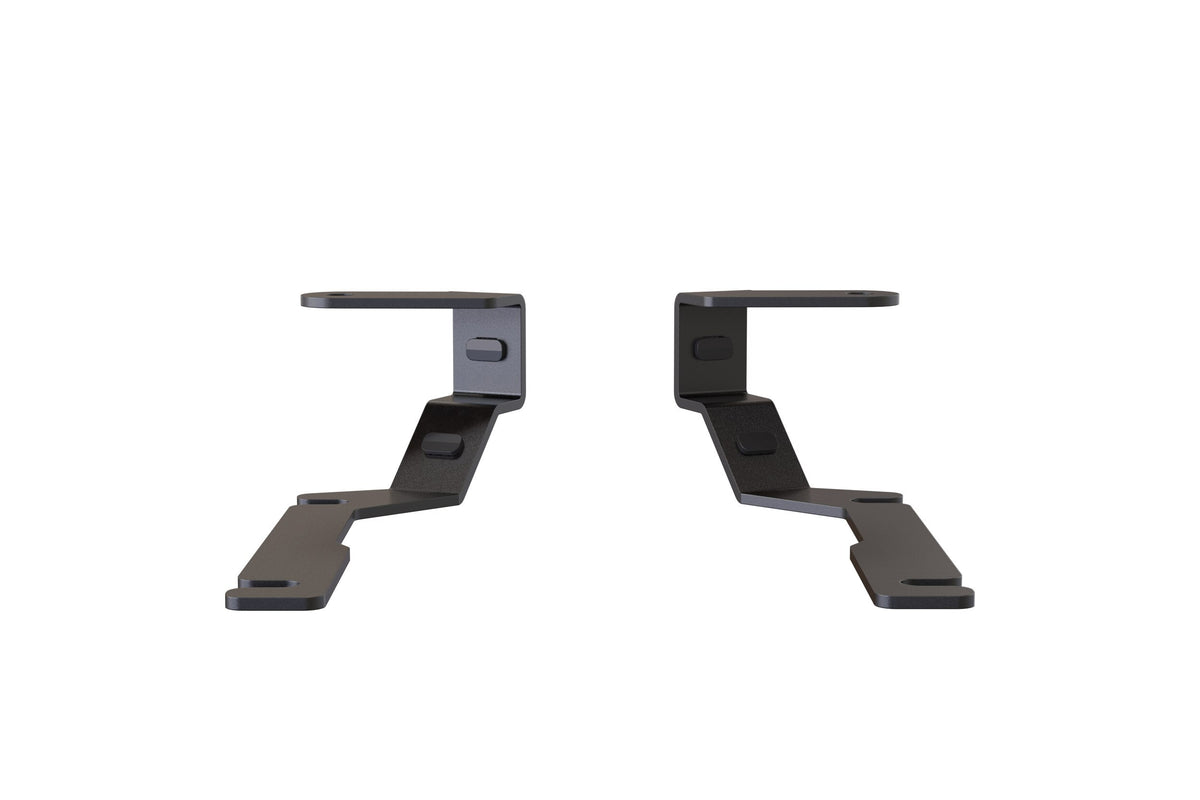

Brackets
Material: Laser-cut, powdercoated 304 stainless steel
Part Number: BAF142
What's Included
Ditch Brackets: 2x (One Pair) BAF142 Brackets
Hardware: Plastic cable clips for clean wire routing
Optional LED Pods: 2x Morimoto 2Banger / 4Banger / BigBanger (choose series, beam and color)
4Banger Mounts: Standard bottom mount brackets included with 4Banger pods
Optional Wiring: Morimoto power harness or Deutsch DT pigtails
Warranty: Lifetime limited warranty from Morimoto
Need Pods?
Ordering brackets only? These brackets fit Morimoto 1Banger, 2Banger, 4Banger, or BigBanger pods. Add pods in the options above, or shop them on their own: 2Banger LED pods, 4Banger LED pods, BigBanger LED pods.
Installation
Questions during install? Call MWCustoms at (316) 925-7145 and our team will help you through it.
Built Different
MWCustoms has specialized in custom truck and SUV lighting and painted parts since 2014. We only offer products we'd be comfortable putting on our own builds.
Morimoto off-road lighting
Lifetime Morimoto limited warranty
20,000+ custom builds completed
Real phone and email support
Light up the trail. Upgrade with MWCustoms.
Questions about fitment or install? Call MWCustoms at (316) 925-7145.
