2009-2014 FORD F150 MORIMOTO XB EVO LED HEADLIGHTS
Monthly payments available.
0% APR or interest-bearing rates. Subject to eligibility and approval.
- Free shipping on orders over $400
- Warranty included
- Expert install support available
2009-14 Ford F-150 Morimoto XB Evo LED headlights, built and painted to your truck in our Valley Center, KS facility.
The XB Evo runs two bi-LED projectors per side (Nichia LEDs) plus Morimoto 1Banger high-beam assist for serious output. The DRL can be set to white or amber, the turn signals run sequential or fade-off, and a frost-free heated lens with circulation fans keeps snow and ice clear. Inside is a two-tone piano black and titanium finish.
We paint the housing to your factory paint code, add the lighting upgrades you choose, and ship a set that bolts in.
Compatibility
- 2009-2014 Ford F-150, all trims: XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, Limited and SVT Raptor
- Fits trucks with factory halogen or factory HID headlights (adapters for both are included)
- North American, left-hand-drive trucks
Specs
- Light source: dual bi-LED projectors per side, Nichia NC4W193F LEDs, plus 2 Morimoto 1Banger combo-beam high-beam assist
- DRL: selectable white or amber with glass-like 3D optics; turn signal: sequential or fade-off

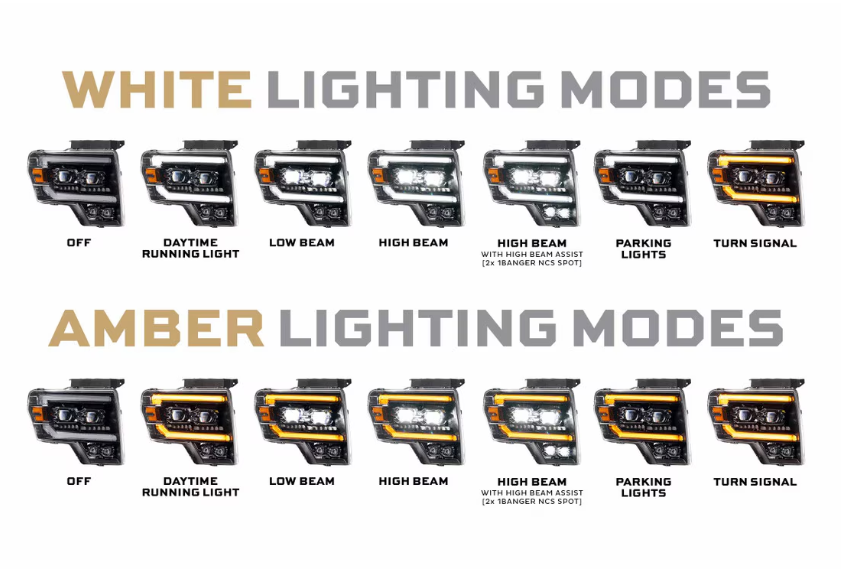

- Functions: low beam, high beam, parking light, turn signal, DRL, welcome sequence, lens heating
- Frost-free system: 50W ceramic lens heating with circulation fans
- Amber side reflex reflector
- Housing interior: two-tone piano black and titanium; lens: polycarbonate with UV-shield hard coat
- DOT / SAE / FMVSS108 compliant with standard drivers
- Replaces OE part numbers: FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008BB, DL3Z13008CB, DL3Z13008DB, DL3Z13008EB, DL3Z13008EC, DL3Z13008FB, FR560B1A12SD6V

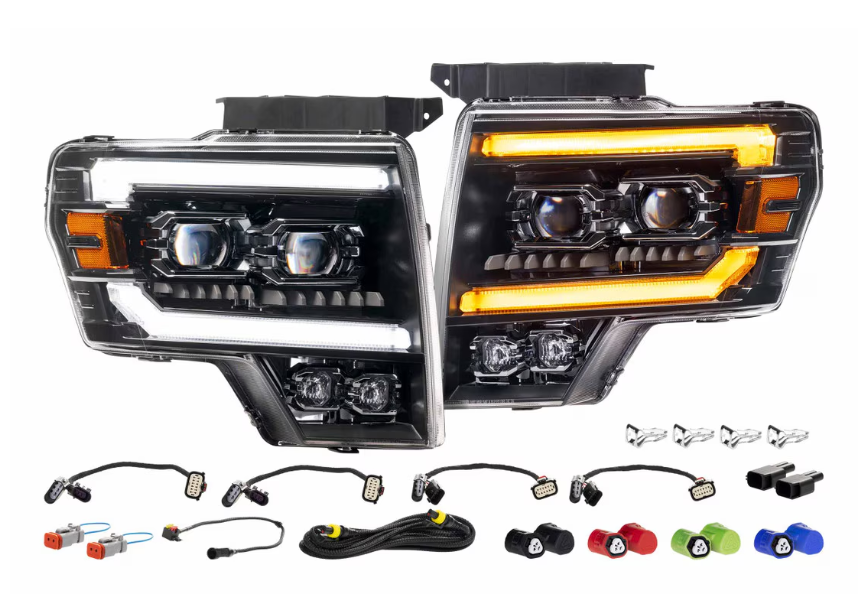

What's included
- Pair of headlights, pre-built and painted to your spec
- 8 function selector keys (DRL and turn signal modes) and 2 high beam keys
- 2 halogen adapters and 2 OEM HID adapters
- DRL harness and fuse tap hardware
- 4 mounting clips and 2 side marker connector caps
- All mounting hardware and the MW Customs install guide
Installation
These swap in place of your factory headlights using the stock mounting points. Plug in the included halogen or HID adapter for your truck, connect the DRL harness with the supplied fuse tap, and bolt them in. No cutting or permanent modification is needed.
Built different
- Hand-built in our $1.5M, 10,000 sq ft facility in Valley Center, KS
- Painted by professionals with 40+ years of collective automotive paint experience, matched to your factory paint code
- SEMA-proven craftsmanship on 100+ show builds
- 1-year warranty and live expert support: (316) 925-7145
